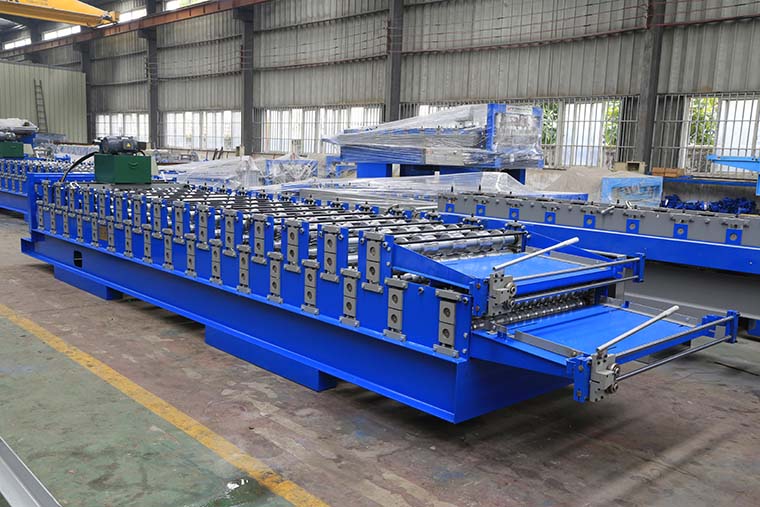

Double Layer Roof Panel Roll Forming Machine
1. Main features of double layer roof panel forming machine
The advantages of a double-layer roof panel machine are as follows:
1. Able to produce two different profiles.
2. Save space, more convenient.
3. Easy operation, low maintenance cost
4. Stable and durable
2. Detailed Images of double layer roll forming machine
Machine Parts
1) Double layer roof panel machine pre-cutter
Brand: BMS Original: China
Avoid wasting material.
2) Double layer roof panel machine rollers
Brand: BMS Original: China
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body frame made from 300# H type steel by welding
3) Double layer roof panel machine post cutter
Brand: BMS Original: China
Made by high-quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 25mm steel plate by welding
Hydraulic motor:2.2KW, Hydraulic pressure range: 0-16Mpa
4) Double layer roof panel machine touching screen
Brand: BMS Original: China
Easy to operate
5) Double layer roof panel machine decoiler
Brand: BMS Original: China
Manual Decoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1250mm, coil ID range 470mm±30mm
Capacity: Max. 8 Ton
With 6 tons hydraulic decoiler for option
6) Double layer roof panel machine exit rack
Brand: BMS Original: China
Un-powered, one unit
Other detailes of double layer roof panel forming machine
Suitable for material with thickness 0.3-0.8mm
Shafts manufactured from 45#, Main shaft diameter=φ75mm, precision machined
Motor driving, Gear chain transmission
Main motor=2.2KW, Frequency speed control. Forming speed of approx.12-15m/min
PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,
Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manual in English
After-sale service of double layer roof panel machine
1. The warranty for double layer roof panel machine
is one year after the client receives the machine.
Within one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories at extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 30 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore,
Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
